Ürün ayrıntıları:
|
| Yalıtım direnci: | 50mΩ dk, dc500v | Şekil: | Dikdörtgen |
|---|---|---|---|
| İşlev: | İt ve çek | NAKLİYE: | DHL UPS FEDEX EMS |
| Curren: | 0,85A | Malzeme Türü: | Yumuşak manyetik malzemeler |
| Ömür: | 500.000'den fazla döngü | Tansiyon: | > 400gf |
| Başlangıç emme kuvveti: | 0.2N | Biometre: | Test ömrü 50.000 kere. |
| Anahtar kelime: | Doğrusal solenoid | doğru akım direnci: | 4Ω ±% 10 Ambiyans Sıcaklığı 20 ℃ |
| Güç: | DC | IP Derecelendirmesi: | IP65 |
| Potence: | Normal |

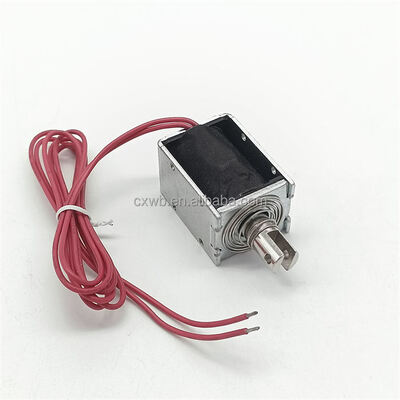

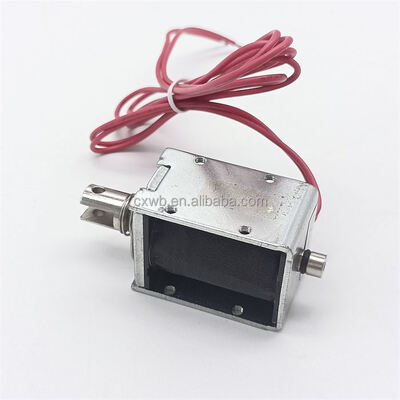

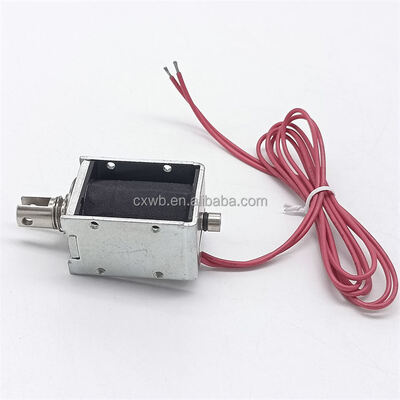

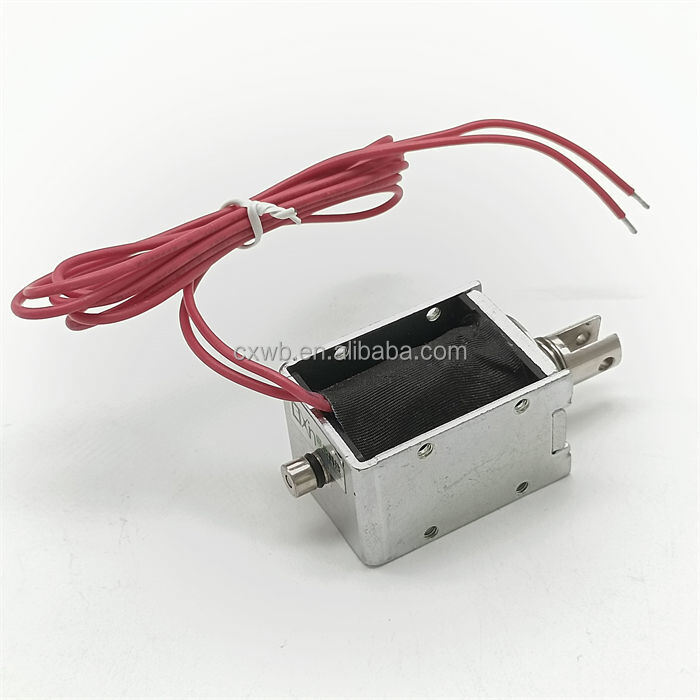

Push Pull Solenoid/Open Frame Solenoid/Linear Solenoid
1. Open frame structure with mounting holes.
2. Push or pull type, linear motion, reset by plunger spring.
3. Dc power supply, standard voltage 12V or 24V, we can custom the voltage(3~24Vdc) as you need.
4. Connecting to power, plunger will pull in or push out, when power is off, plunger will reset by spring.
5. Electric Duty cycle(ED): 10%~100%, which depend on your power on time and off time in using.
6. Application: electronic machine, printing machines, robot arm, vending Machine,storage cabinet, sharing bicycle,subway gate etc.
7. Different models are available.
8. 20 years of design and produce experience,OEM/ODM is acceptable,
WELCOME TO INQUIRY US
| Products Data Sheet | |||
| Product name: | Push Pull Solenoid | Insulation Class: | B |
| Model: | U1040S-1 | Hi-Pot test: | AC750V/2S |
| Frame Size: | L40xW29xH24 | Service Life: | >500,000 Times |
| Stroke: | 6.5 mm | Lead time: | 5 days if have stock |
| Action Form: | Pull/Push | Sample Order: | Acceptable |
| Voltage: | DC 12v/24v or customzied | MOQ: | 5 PCS |
| Duty Cycle: | 10%~100% | Warranty: | 2 Year |
| Install Thread size: | M3 | Origin: | China |
| N.W.: | 128 g | Surface: | Electroplating |
| Certificate: | CE/ROHS | Material: | steel & enameled wire |
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
Cixin technology
|
|
Model Number
|
U1040s-06
|
|
Type
|
open frame push pull solenoid
|
|
Duty Cycle
|
power-on rate 10%
|
|
Power (Watts)
|
19.2w
|
|
Voltage - Rated
|
DC 6V, DC 12V, DC 24V
|
|
Mounting Type
|
Thread installation
|
|
Description
|
DC 12V 24v open frame solenoid 8mm stroke solenoid for locks
|
|
Product name
|
open frame solenoid
|
|
Voltage
|
6VDC/12VDC/24VDC
|
|
Stroke
|
8-12mm
|
|
Diameter
|
10mm
|
|
Rated voltage
|
DC6V 10%
|
|
Tolerance
|
±0.2
|
|
Service
|
24 Hours Online
|
|
Certificate
|
ISO9001:2015
|
1. Why choose us?
1). We have been in the elevator industry for 15 years and have a professional technical team that can give customers solutions to complex shaft spaces for new elevators.
2). Our technicians have long-term working experience in global elevator companies and can provide effective suggestions for customized car and elevator door material decoration according to customer requirements. Let your elevator not only have quality assurance but also aesthetic elements.
2.Are our elevators safe? -About the door
1). The 1st line protection - the light curtain will automatically reopen the door when it senses an obstacle;
2). The 2nd line protection - the door inverter will give signal to reopen the door when the obstacle reaches 150N to prevent people from being pinched.
3. Are our elevators safe? -How to prevent falling and hitting the top
1). All our safety components are with CE and EAC certification;
2). When the elevator falls faster than 1.15 times the rated speed, the speed governor and tension device will activate the lifting rod of the safety gear, which can stop the further fall by braking the guide rail;
3). When the upward speed exceeds 1.15 times the rated speed, the control cabinet will send a signal to the traction machine, and the traction machine will brake, so that the traction machine will stop going up.
