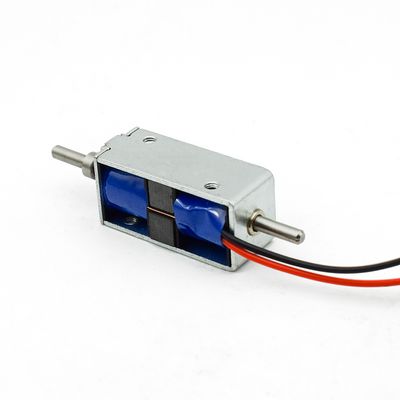

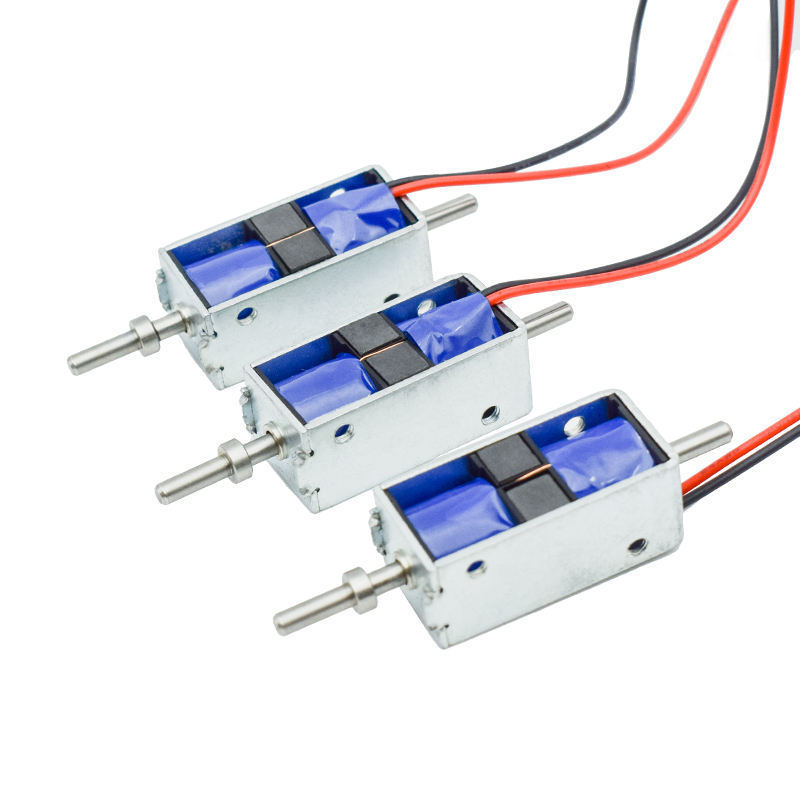

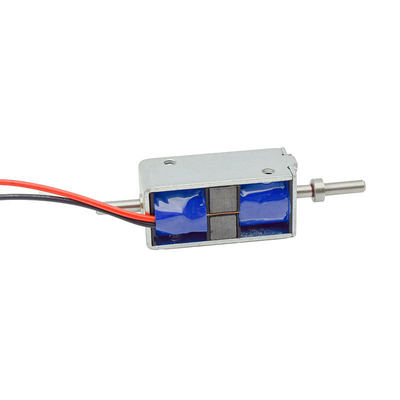

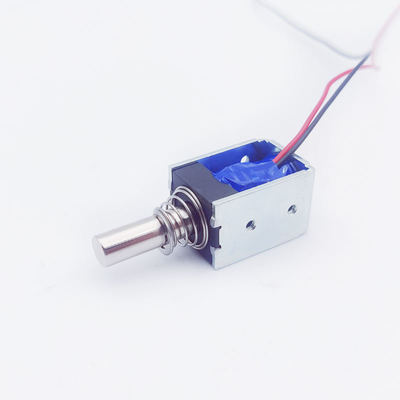

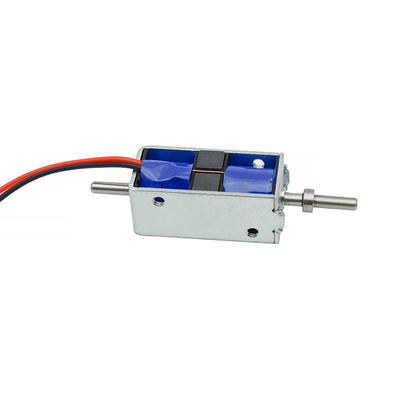

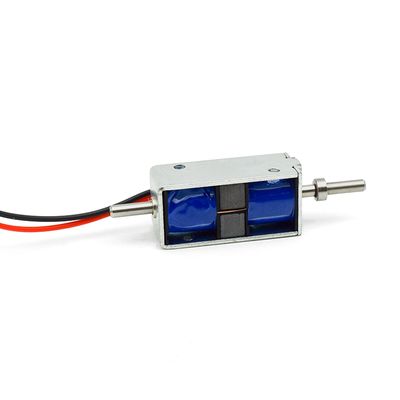

KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid

KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid
KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid

Büyük resim :  KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: Dason
Sertifika: ISO9001
Model numarası: KS0735
Ödeme & teslimat koşulları:
Min sipariş miktarı: 500
Fiyat: 10USD
Teslim süresi: 20 gün
Ödeme koşulları: T/T
Yetenek temini: 500000 adet
İletişim

KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid

Açıklama
Mevcut özellikler: DC Şekil: Silindirik
Başvuru: Elektromekanik cihaz Çalışma Döngüsü: 0,5 saniye açık, 5 saniye kapalı
İlk emme: 300 gram Çalışma voltajı: 3-220VAC, 3-220VDC V
Tip: Bistinable İşlev: Elektrik enerjisini doğrusal harekete dönüştürün
Akım: Uygulamaya bağlı olarak değişir Göreceli nem: %10~%90 bağıl nem
Güç: Uygulamaya bağlı olarak değişir Felç: Uygulamaya bağlı olarak değişir
Rezistans: 12Ω Şartname ve boyut: 11*40 （mm）
tutma kuvveti: ≥1000GF

Key attributes

Place of Origin
China
Brand Name
Dason



Model Number



KS0735
Type
bistable latching solenoid
Mounting Type
Mounting screw
Description
bistable latching solenoid
Product name
24 volt bistable latching solenoid
Structure
Push Pull Solenoid
Voltage
DC12V 24V
Body material
Cast Iron
Usage
Indusrial
Valve type
Normaly Closed
Certification
CE RoHS ISO
MOQ
2pcs
Keyword
Open Frame Solenoid
Type
SOLENOID VALVES



Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Products Specifications
Brand
Dason
Product Series
Open frame solenoid
Model
KS0735
Voltage
12v/24v dc
Power
21.6w
Force
5N
Stroke
5.2mm
Duty Cycle
10%
Cable Length
200mm or customization
Materials
steel & enamelled wire
Action Form
Push pull type
Weight (N.W.)
0.2kg
Install style
Screw
Thread size & Deepth(mm)
4-M3
Hi-Pot Test
AC 600V 50/60Hz 2s
Insulation Class
B
Packaging details
Body size(mm)
35.4*16*14mm
Packaging box size(cm)
standard:21*14*13(cm), custom accepted





Product Features
1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid 0
KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid 1
KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid 2
Q: Are you trading company or manufacturer?
A: We are original factory.
Q:How to choose a solenoid/electromagnet?
A:Following parameters should be provided: voltage(DC/AC), power, current, resistance, stoke, force, dimension limit, force,residual force, duty cycle, etc.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to
quantity.
Q:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.
